Brickref / assemblies

55206 Electric Sound Brick

55206 Sound Brick
55206 Sound Brick underside

The underside of 55206. Getting into the brick is simple by removing the single screw.

55206 Sound Brick with bottom removed

Above: the bottom has been removed.

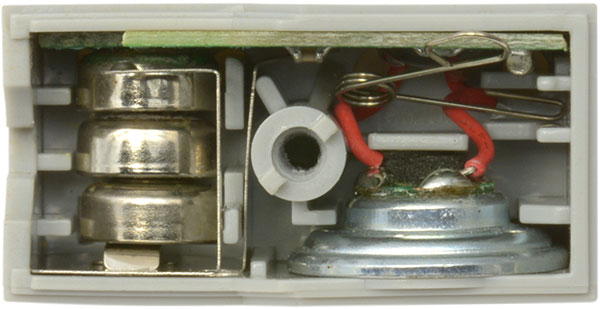

55206 Sound Brick inside with button removed.

View of inside with button removed.

55206 Sound circuit board and speaker

Circuit board and speaker.

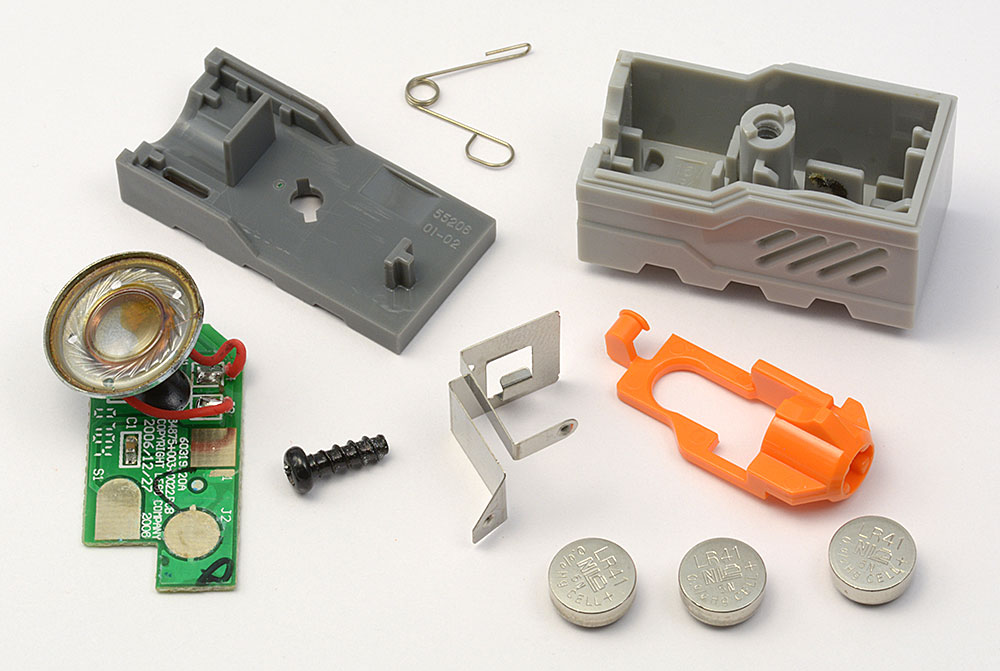

55206 Sound Brick parts

Disassembled. Top row: 55206 Dark Stone Grey base, spring, 54929 Medium Stone Grey top. Middle row: circuit board with attached speaker, screw, contact plate, button. Bottom row: three LR41 1.5v button cells.
