LEGO® 3962 vs 19220 Walkie Talkies

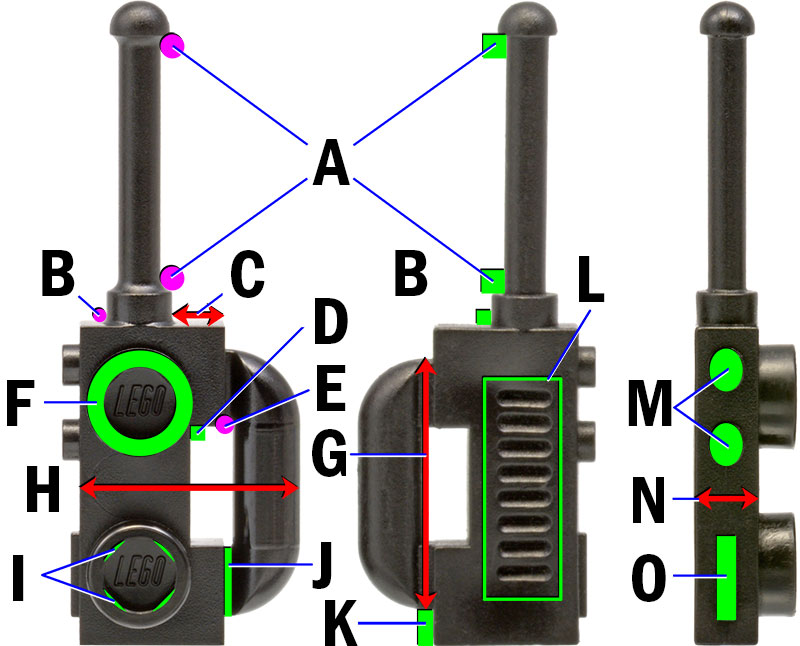

| KEY | |
|---|---|
| A | Antenna Terminus |
| B | Collar Terminus |
| C | Antenna Offset |
| D | Body Return |
| E | Handle Joint |
| F | Studwall Thickness |
| G | Handle Height |
| H | Width Body + Handle |
| I | Friction Flats |
| J | Handle Side Offset |
| K | Handle Bottom Offset |
| L | Vents |
| M | Round Buttons |
| N | Thickness |
| O | Rectangular Button |

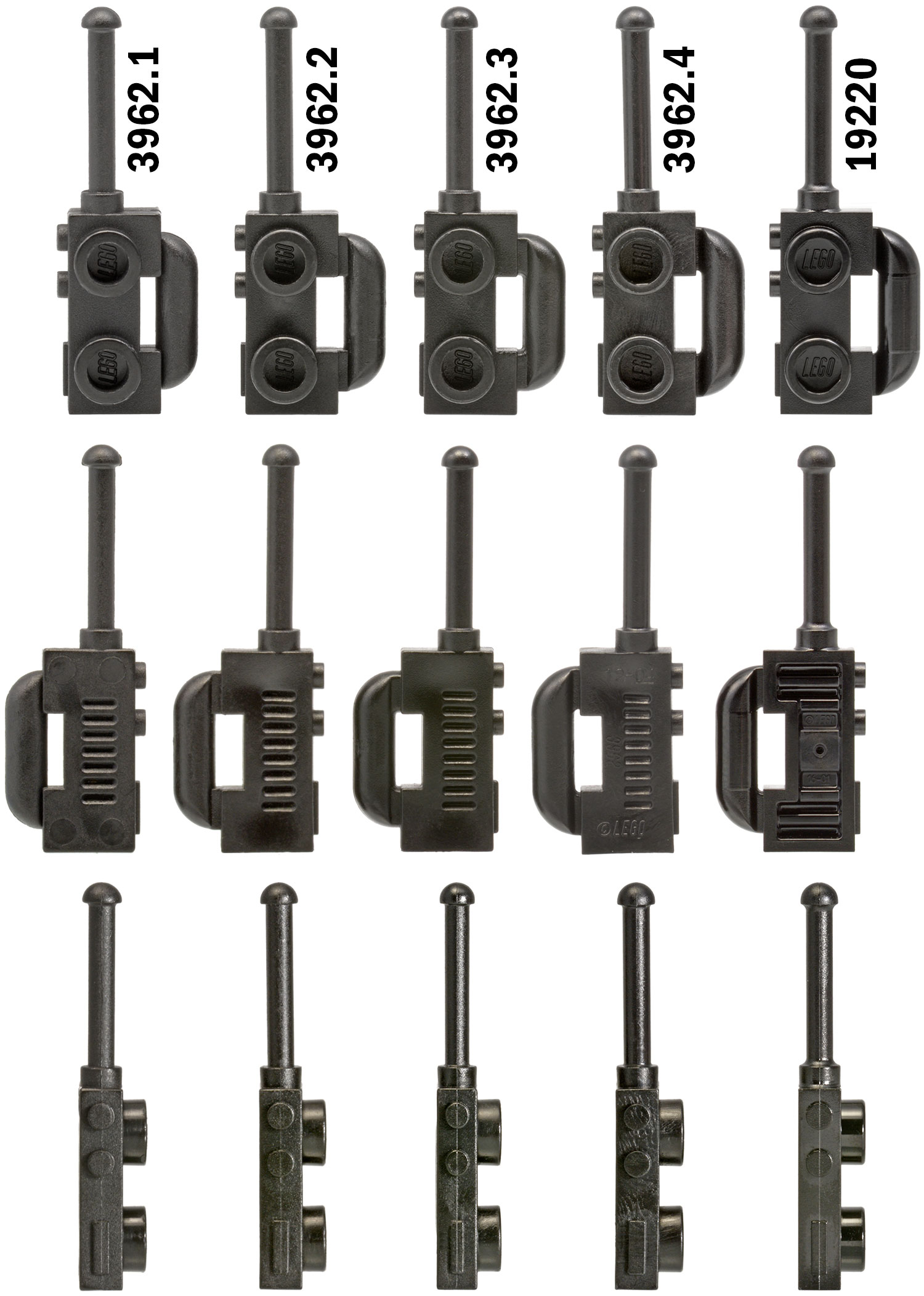

3962.1
3962.2
3962.3
3962.4
19220
A
square square square
small radius
large radiusB
square square square square
small radiusC
2.75 mm 2.75 mm 2.75 mm
2.59 mm
2.45 mmD
square square
rounded square squareE
square square
rounded rounded roundedF
.95 mm .95 mm .95 mm
.88 mm
.8 mmG
11.65 mm 11.65 mm 11.65 mm
12.41 mm
12.52 mmH
9.55 mm
10.27 mm
10.35 mm 10.27 mm
10.31 mmI
none
none
none
⊕ top stud;⊗ bottom stud
⊗ both studsJ
0
.7 mm
.8 mm
.25 mm
.5 mm
K
1.72 mm 1.72 mm 1.72 mm 1.26 mm 1.33 mmL
7 slots 3 mm w
8 slots 3 mm w 8 slots 3 mm w
8 slots 2.5 mm wide, numbers, ©
recess with 6 lowered slots
M
2mm dia. 2 mm dia. 1.75 mm x 1.94 mm 2 mm dia. 2 mm dia.O
1.16 mm x 3.95 mm 1.16 mm x 3.95 mm .98 x 3.95 mm 1.26 mm x 3.95 mm 1.2 mm x 3.98 mmN
3.2 mm 3.2 mm
3 mm 3.2 mm 3.2 mm
Last updated 2020-06-05
