LEGO® 2476 2x2 Plate with Underside Pin Variants

2476 variants

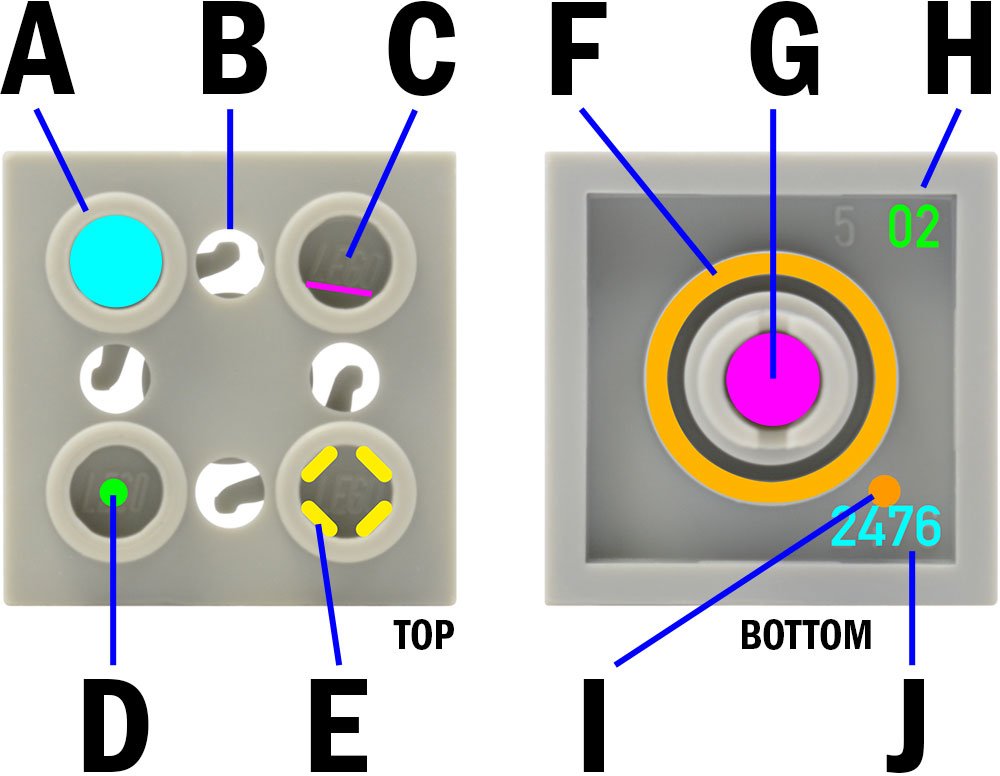

KEY
AStud Inner Diameter
BHoles
CLogo Orientation*
DInjection Point
EFriction Flats
FRing
GPinhole Diameter
HVersion Key
IDimple
JElement ID/Orientation †
* relative to bottom
† relative to top

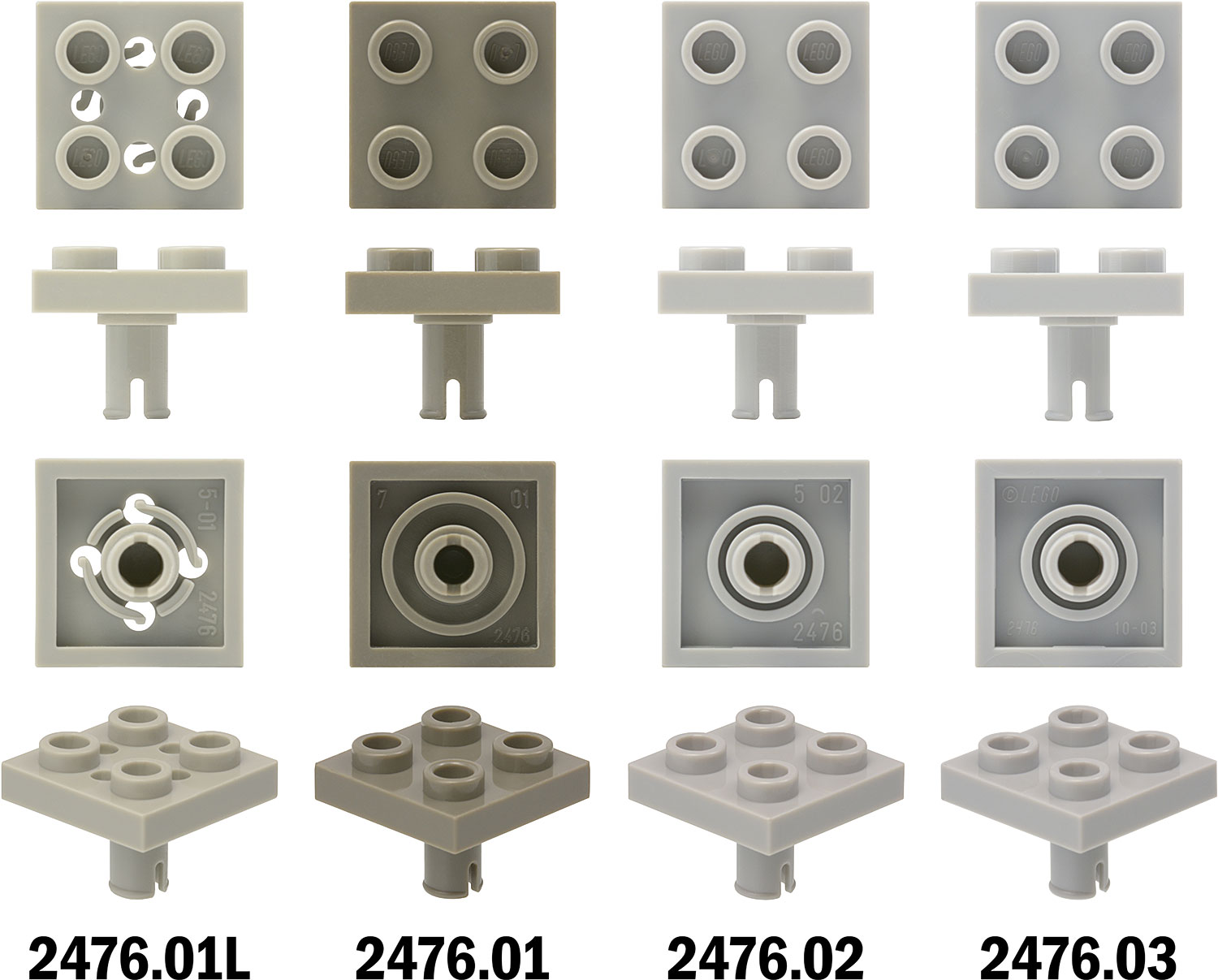

2476.01L
2476.01
2476.02
2476.03

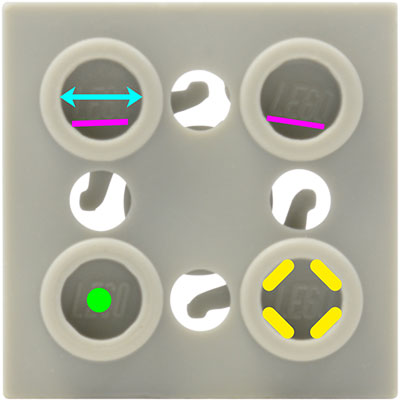

walkie 2476.01L front

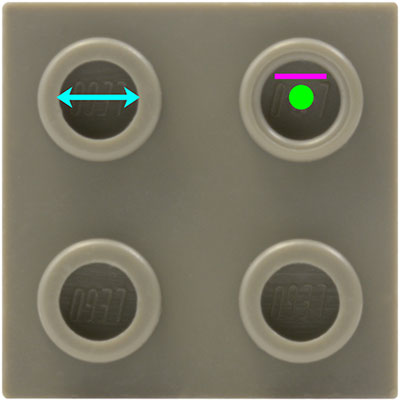

walkie 2476.01 front

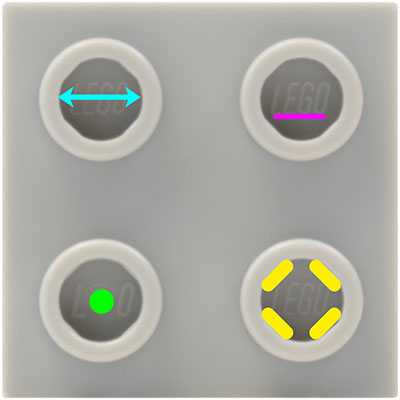

walkie 2476.02 front

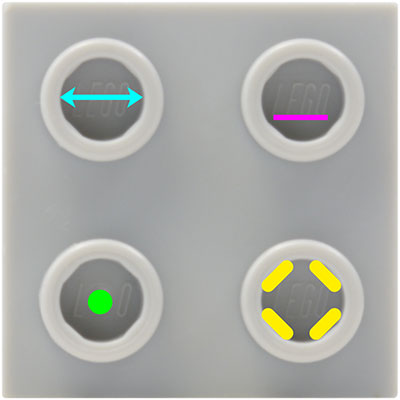

walkie 2476.03 front
A
square icon 3.18 mm
square icon 3.1 mm
square icon 3.18 mm
circle icon 3.18 mm
B
present
none
none
none
C
square icon top left 2° left, top right 9° right, bottom two 0°
square icon all 180°
square icon all 0°
square icon all 0°
D
square icon bottom left stud
square icon top right stud
circle icon bottom left stud
square icon bottom left stud
E
square icon ⊗ all studs
none
circle icon ⊗ all studs
circle icon ⊗ all studs

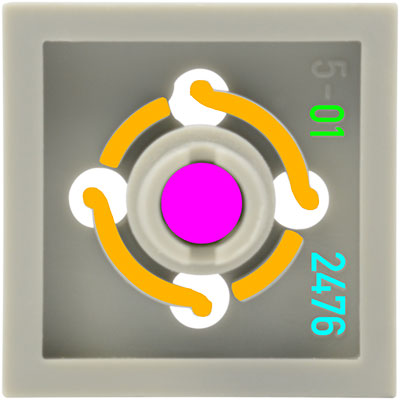

walkie 2476.01L back

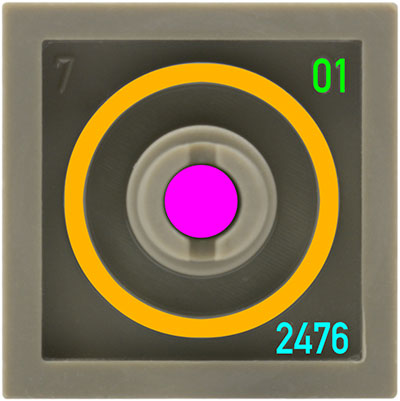

walkie 2476.01 back

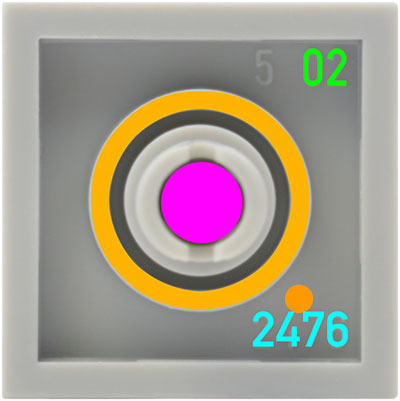

walkie 2476.02 back

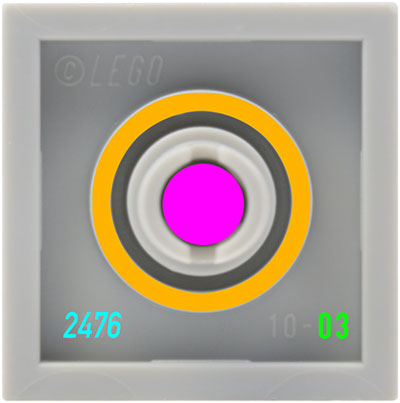

walkie 2476.03 back
F
triangle icon 8.85 mm dia. locking
triangle icon 11 mm
triangle icon 8.85 mm
triangle icon 8.85 mm
G
rectangle icon 3.4 mm
rectangle icon 2.96 mm
rectangle icon 3.4 mm
rectangle icon 3.4 mm
H
rectangle icon 01
rectangle icon 01
rectangle icon 02
rectangle icon 03
I
none
none
dimple icon present
none
J
vertical rule icon 90° right
vertical rule icon 0°
vertical rule icon 0°
vertical rule icon 0°
2476 variants

Notes: .02 and .03 variants effectively identical except for embossed glyphs.

Last updated 2020-06-23
