Walkie Talkies

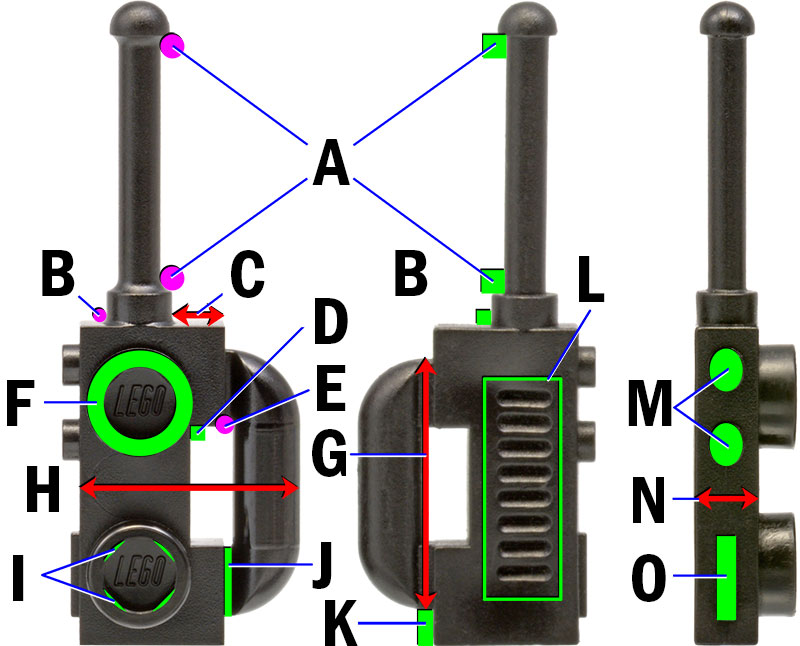

walkie talkie variants
KEY
AAntenna Terminus
BCollar Terminus
CAntenna Offset
DBody Return
EHandle Joint
FStudwall Thickness
GHandle Height
HWidth Body + Handle
IFriction Flats
JHandle Side Offset
KHandle Bottom Offset
LVents
MRound Buttons
NThickness
ORectangular Button
3962.1
3962.2
3962.3
3962.4
19220

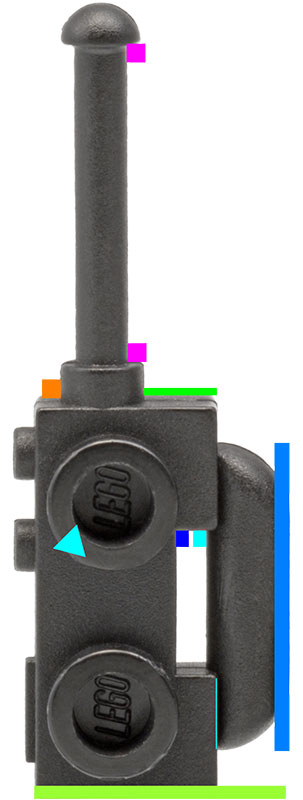

walkie 3962.1 front

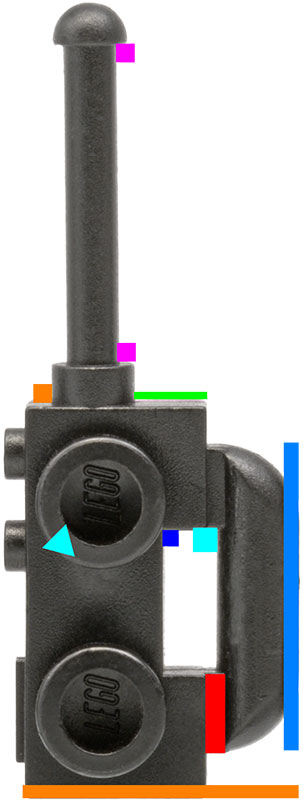

walkie 3962.2 front

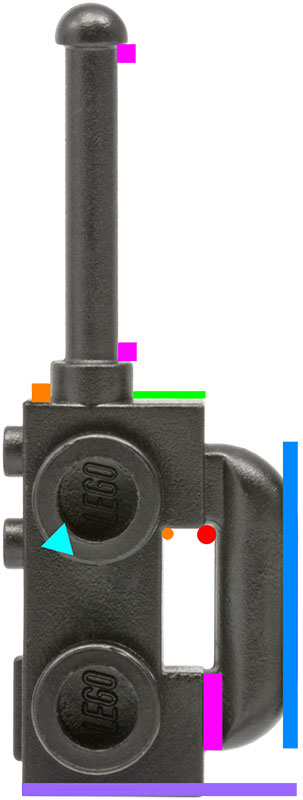

walkie 3962.3 front

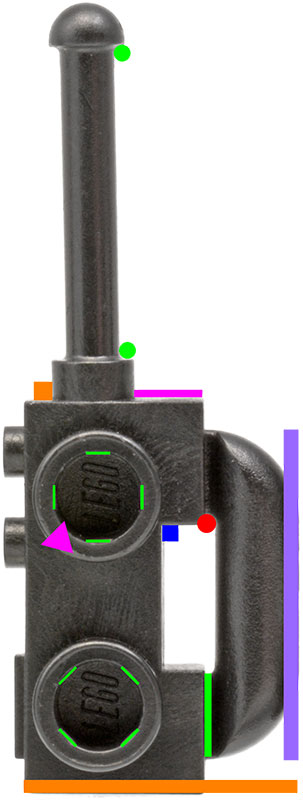

walkie 3962.4 front

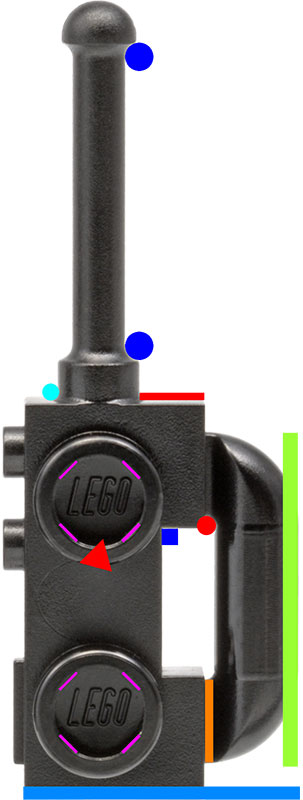

walkie 19220 front
A
square icon square
square icon square
square icon square
circle icon small radius
circle icon large radius
B
square icon square
square icon square
square icon square
square icon square
circle icon small radius
C
square icon 2.75 mm
square icon 2.75 mm
square icon 2.75 mm
square icon 2.59 mm
square icon 2.45 mm
D
square icon square
square icon square
circle icon rounded
square icon square
square icon square
E
square icon square
square icon square
circle icon rounded
circle icon rounded
circle icon rounded
F
triangle icon .95 mm
triangle icon .95 mm
triangle icon .95 mm
triangle icon .88 mm
triangle icon .8 mm
G
rectangle icon 11.65 mm
rectangle icon 11.65 mm
rectangle icon 11.65 mm
rectangle icon 12.41 mm
rectangle icon 12.52 mm
H
rectangle icon 9.55 mm
rectangle icon 10.27 mm
rectangle icon 10.35 mm
rectangle icon 10.27 mm
rectangle icon 10.31 mm
I
none
none
none
flats icon ⊕ top stud;
⊗ bottom stud
flats icon ⊗ both studs
J
vertical rule icon 0
vertical rule icon .7 mm
vertical rule icon .8 mm
vertical rule icon .25 mm
vertical rule icon .5 mm
walkie 3962.1 back

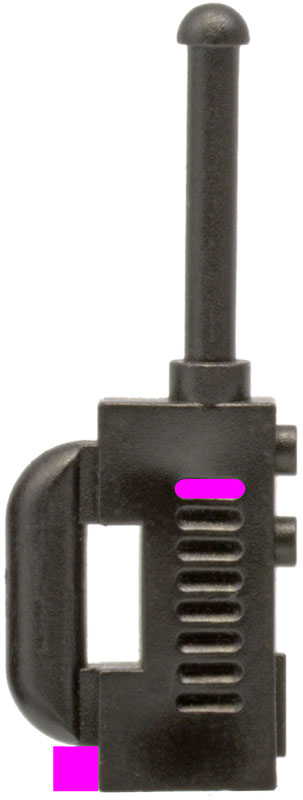

walkie 3962.2 back

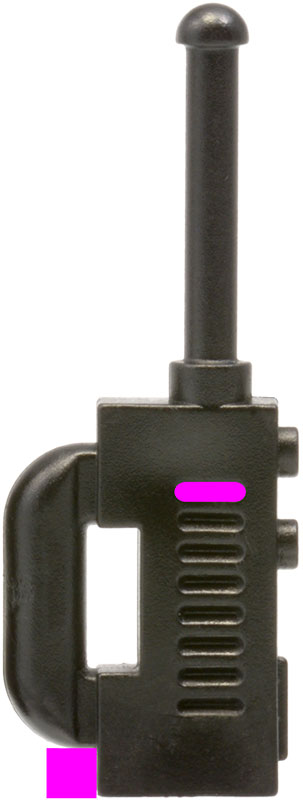

walkie 3962.3 back

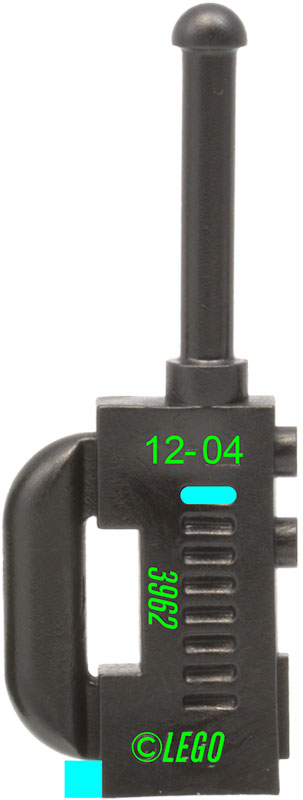

walkie 3962.4 back
walkie 19220 back
K
square icon 1.72 mm
square icon 1.72 mm
square icon 1.72 mm
square icon 1.26 mm
square icon 1.33 mm
L
ellipsis icon 7 slots 3 mm w
ellipsis icon 8 slots 3 mm w
ellipsis icon 8 slots 3 mm w
ellipsis icon 8 slots 2.5 mm wide, numbers, ©
ellipsis icon recess with 6 lowered slots

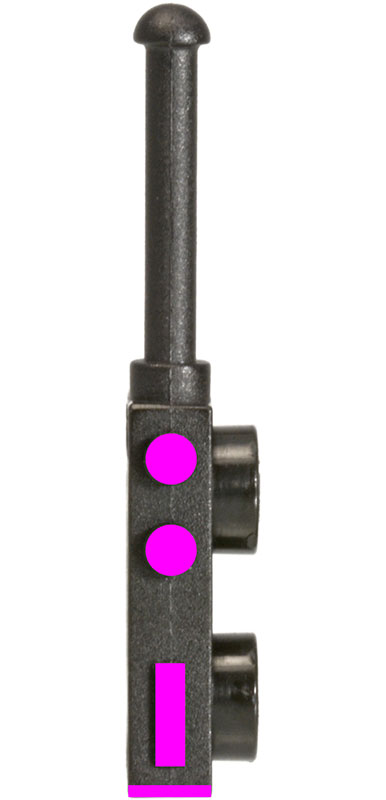

walkie 3962.1 side
walkie 3962.2 side
walkie 3962.3 side

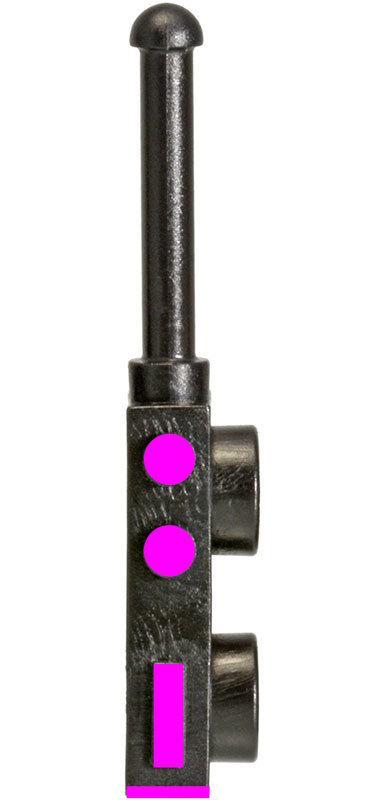

walkie 3962.4 side

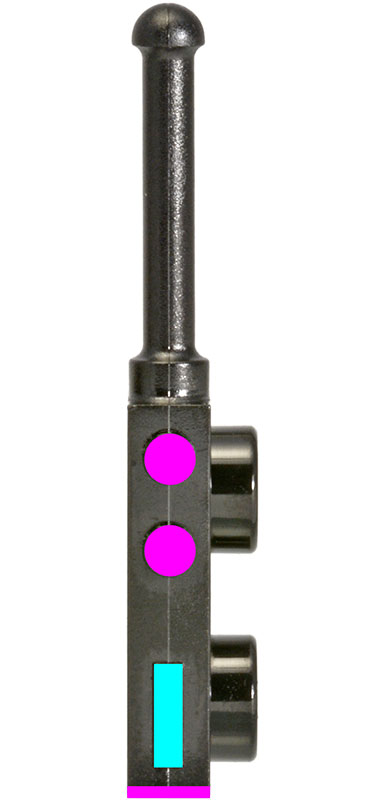

walkie 19220 side
M
circle icon 2mm dia.
circle icon 2 mm dia.
circle icon 1.75 mm x 1.94 mm
circle icon 2 mm dia.
circle icon 2 mm dia.
O
rectangle icon 1.16 mm x 3.95 mm
rectangle icon 1.16 mm x 3.95 mm
rectangle icon .98 x 3.95 mm
rectangle icon 1.26 mm x 3.95 mm
rectangle icon 1.2 mm x 3.98 mm
N
rectangle icon 3.2 mm
rectangle icon 3.2 mm
rectangle icon 3 mm
rectangle icon 3.2 mm
rectangle icon 3.2 mm
walkie talkie variants
